Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

The Waveshare ESP32-S3 Mini Development Board is powered by the ESP32-S3FH4R2 dual-core processor, boasting a 240MHz running frequency. This compact board supports both 2.4GHz Wi-Fi and Bluetooth 5 connectivity. It’s an excellent choice for IoT and wireless communication projects, offering a robust development platform with extensive capabilities, making it suitable for a wide range of applications requiring wireless connectivity, data processing, and control.

Useful link:

ESP32-S3-Zero

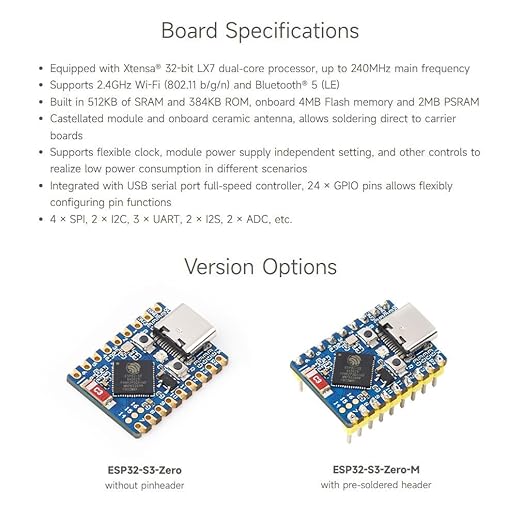

Features:

1. Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
3. Built-in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
4. Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
5. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

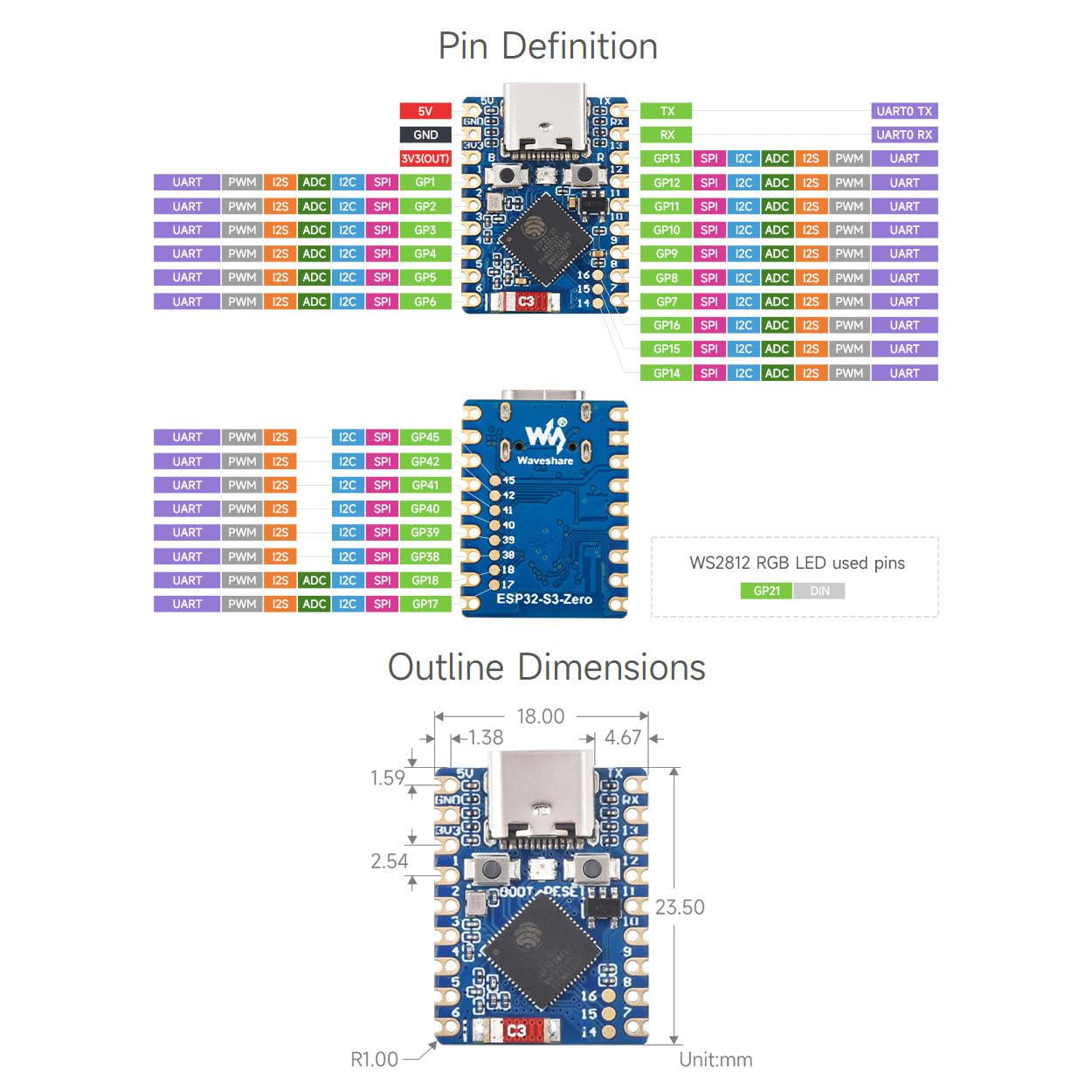

6. Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
7. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

Package Includes:

1 x Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5
