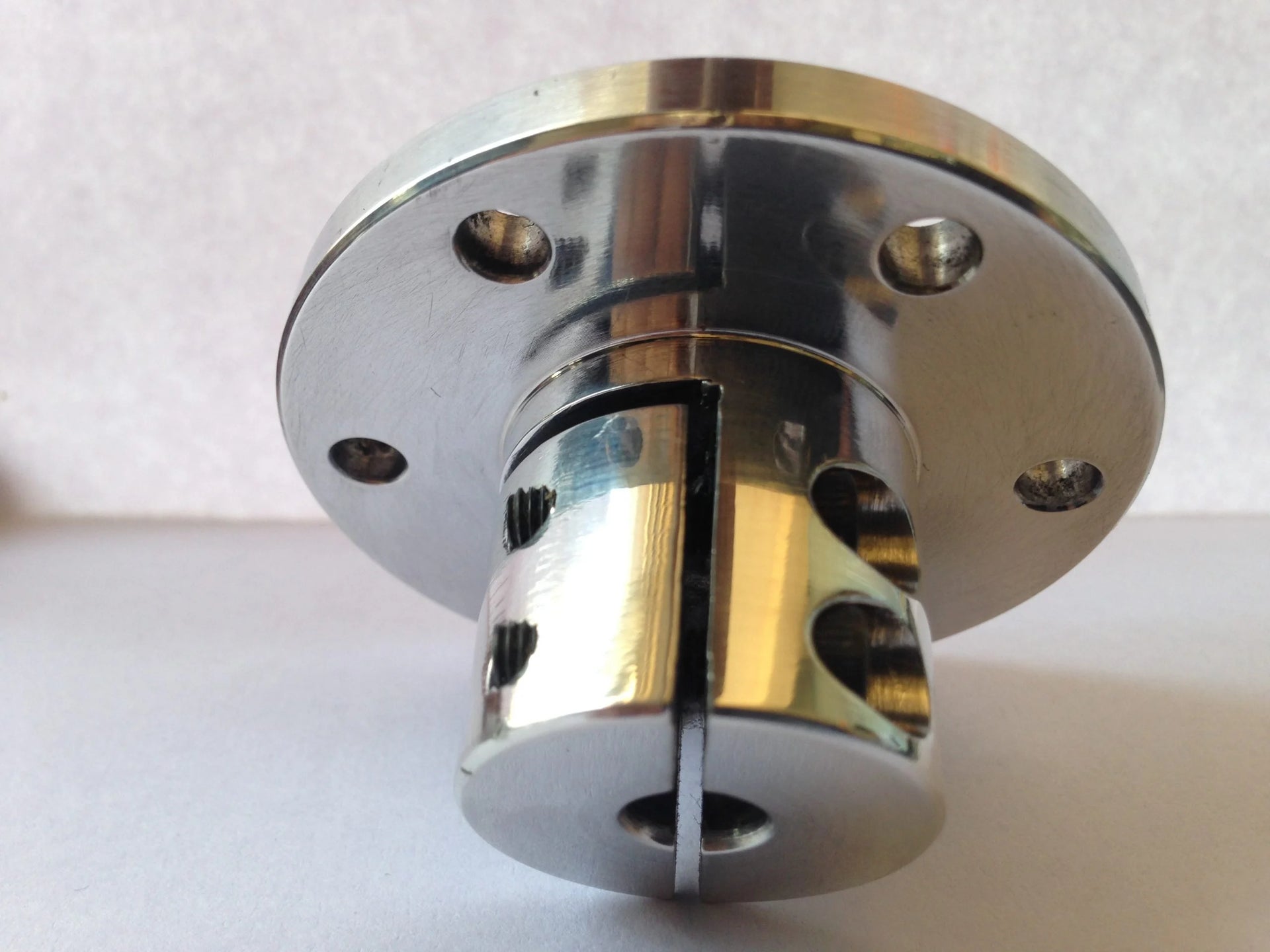

EasyMech Anti-Slip Motor Coupling 10mm Internal Dia (ID)

If you are about to couple Omni, Mecanum or other Heavy Duty wheels with the motor then this is your perfect choice. The EasyMech has designed this Anti-Slip Motor Coupling mainly for one simple purpose, maximizing safe operation by avoiding any undesirable slipping between the motor shaft and the wheel.

This EasyMech Anti-Slip Motor Coupling 10mm Internal Dia (ID) connects a motor having a shaft diameter of 10mm to a wheel which has PCD(pitch circle diameter) of 47.5mm.

They are having a high-quality aluminum body which gives them good operational strength. These rigid couplings will keep backlash to a minimum since the coupling is one single piece. They are tested for the high power robotic application.

The screws that clamp the shafts will be tightened, but not too much. The main feature of this type of clamping couplings is they do not damage the shafts of the motor.

The EasyMech is a brand of Robu.in which designs, produces and supplies the different types of hubs or couplings, It also accepts the custom design suggestions from the customers starting from low quantity orders.

Compatible Motors having a shaft diameter of 10mm,
Tauren Planetary Gear DC motor

IG45 Planetary Geared DC Motor

Compatible Wheels having PCD of 47.5mm,
All Omni wheels(except 100mm aluminum), Mecanum wheels, Modified HD wheels.

Features :

1. Quality assured branded couplings.
2. Equips high-quality aluminum.
3. Avoids damage to the motor shaft.
4. Ensure the safe operation of your robot.

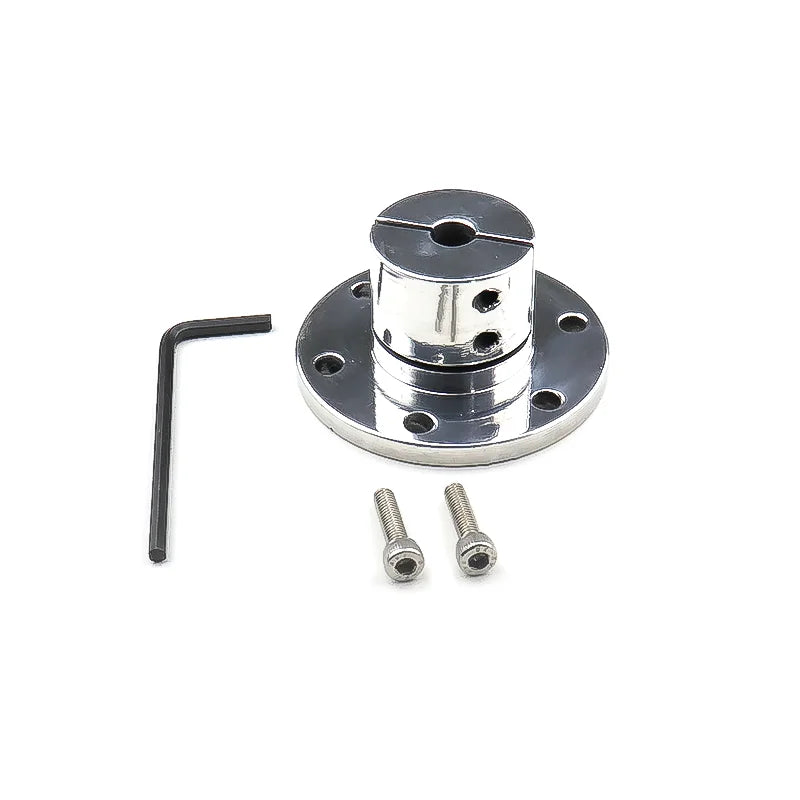

Package Includes :

1 x EasyMech Anti-Slip Motor Coupling.

1 x Medium Quality Allen Key 3mm.

2 x SS Socket Head Cap Allen Bolt M4x16.
