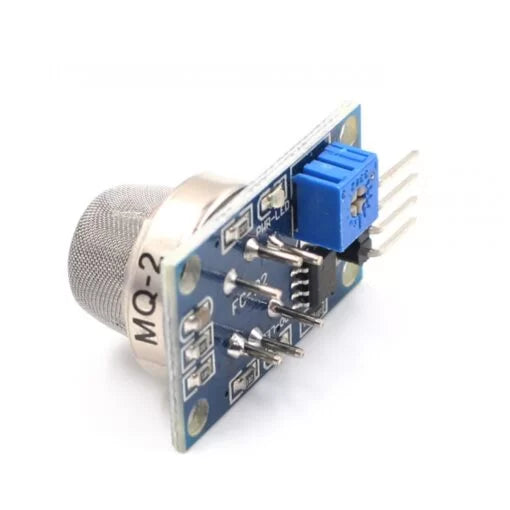

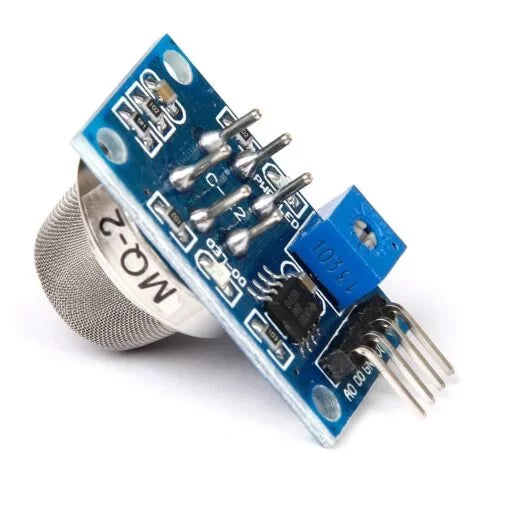

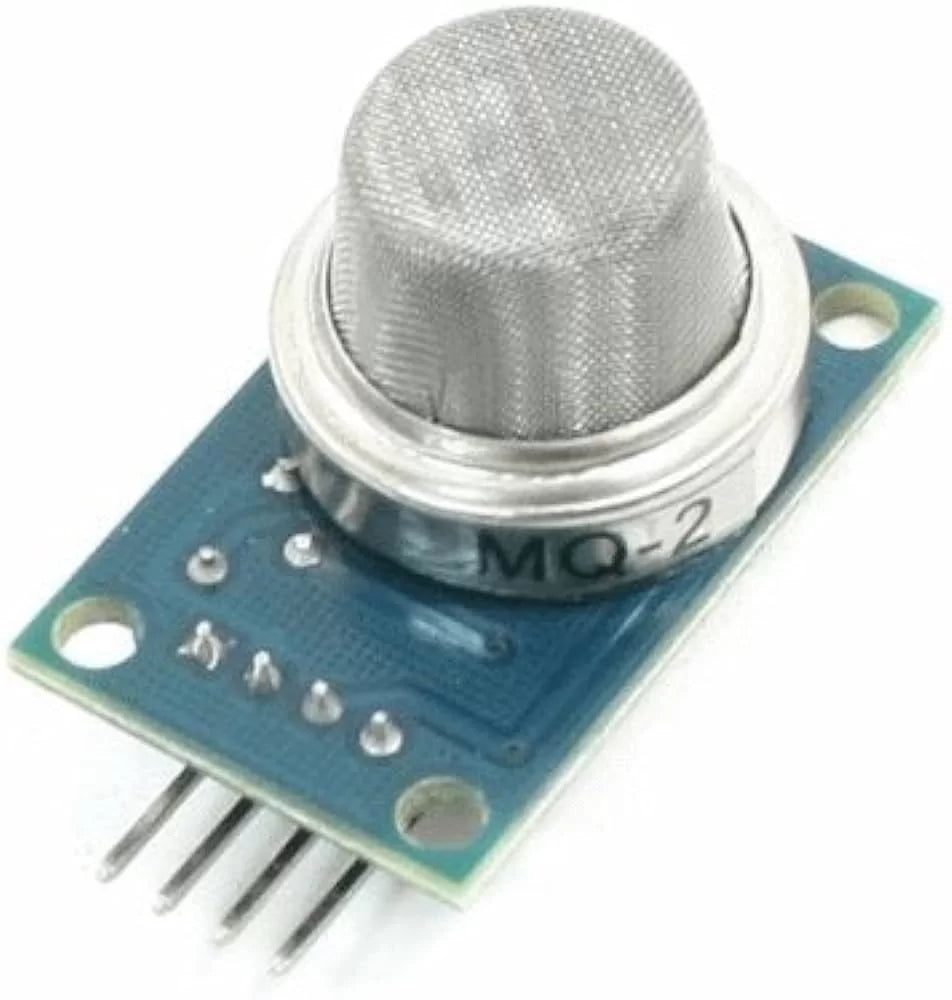

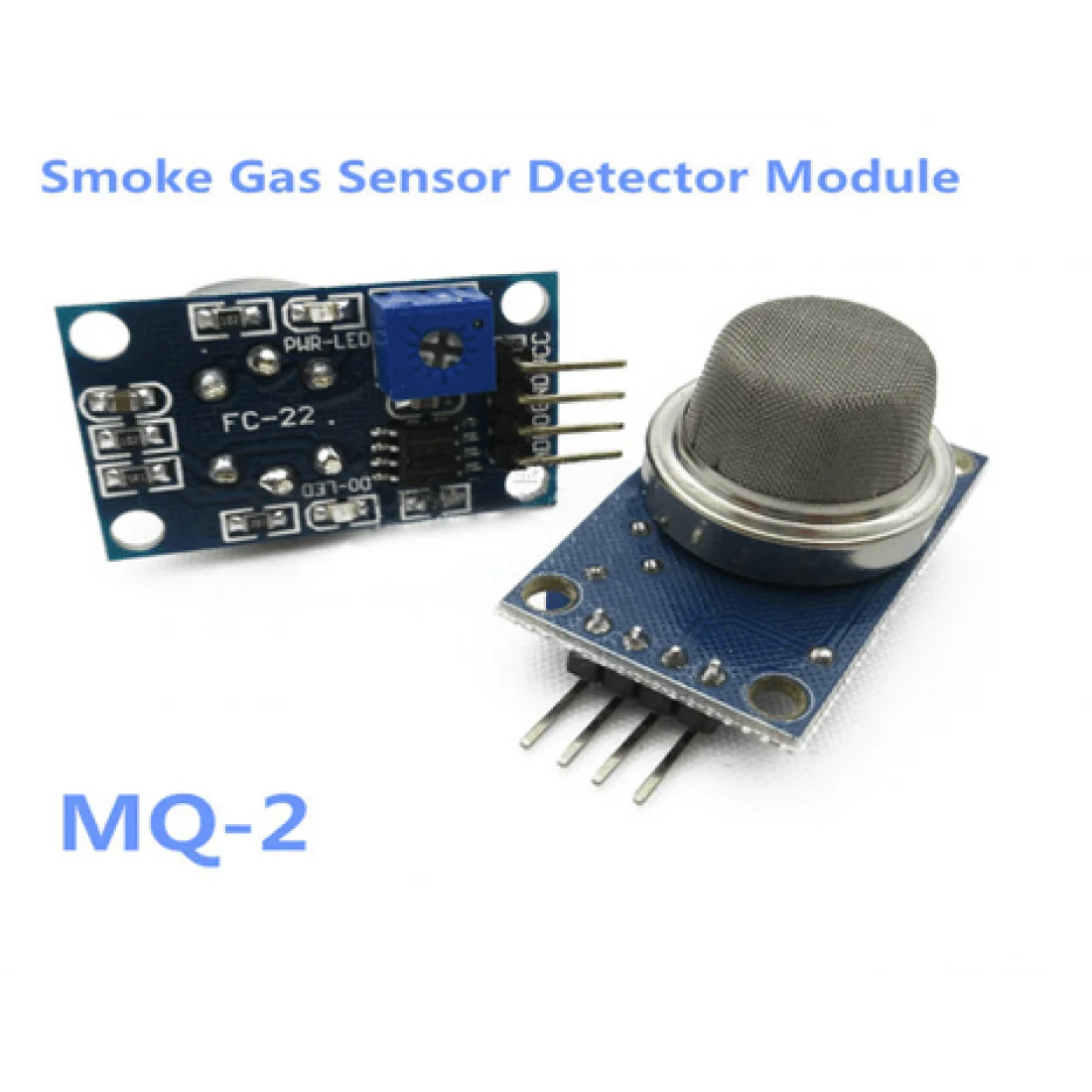

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module

If you are searching for a Gas Sensor module with a very High detection range compared to any ordinary gas sensor then this MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module will fulfill your specification demands. The MQ-2 Gas sensor detector module has a detection range of 300-10000 ppm. The gas sensor modules are always well known for their robust and simple construction and measures toxic gases in very low concentrations.

The MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module is useful for gas leakage detection (home and industry). It is suitable for detecting H2, LPG, CH4, CO, Alcohol, Smoke, or Propane. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by the potentiometer.

MQ-2 gas sensor using gas sensitive material is to be clean air in the lower conductivity of stannic Oxide or tin oxide (SnO2). When the sensor when flammable gases are present in the environment in which the conductivity of the sensor with an increasing concentration of combustible gas in the air increases.

Use a simple circuit to convert the changes in conductivity and output signal that corresponds to the concentration of the gas.

MQ-2 gas sensor higher sensitivity to liquefied petroleum gas, propane, hydrogen, detection of gas, and other combustible vapors are ideal. This sensor can detect a variety of flammable gas, is a low-cost sensor for many applications.

Following conditions must be avoided

Water Condensation
Indoor conditions, slight water condensation will affect sensors’ performance lightly. However, if water condensation on sensors surface and keep a certain period, sensor’ sensitivity will be decreased.

Used in high gas concentration
No matter the sensor is electrified or not if a long time is placed in high gas concentration it will affect the sensor’s characteristics.

Longtime storage
The sensor’s resistance produces reversible drift if it’s stored for a long time without electrifying, this drift is related to storage conditions. Sensors should be stored in airproof without silicone gel bag with clean air. For the sensors with long time storage but no electrify, they need a long aging time for stability before using.

Longtime exposed to an adverse environment
No matter the sensors are electrified or not, if exposed to an adverse environment for a long time, such as high humidity, high temperature, or high pollution, etc, it will affect the performance of the sensor badly.

Vibration
Continual vibration will result in sensors’ down-lead response then rapture. In transportation or assembling lines, a pneumatic screwdriver/ultrasonic welding machine can lead to this vibration.

Concussion
If sensors meet strong concussion, it may lead its lead wire disconnected.

Explore more Gas Sensors click the link Gas Sensor

Application:

1. The domestic gas leakage detector
2. Industrial Combustible gas detector
3. Portable gas detector

Features :

1. Good sensitivity to Combustible gas in a wide range
2. High sensitivity to LPG, Propane, and Hydrogen
3. Long life and low cost
4. Simple drive circuit
5. Can be used as a digital or analog sensor
6. The Sensitivity of the Digital pin can be varied using the potentiometer
7. Can be used to Measure or detect LPG, Alcohol, Propane, Hydrogen, CO, and even methane

Package Includes :

1 x MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module
