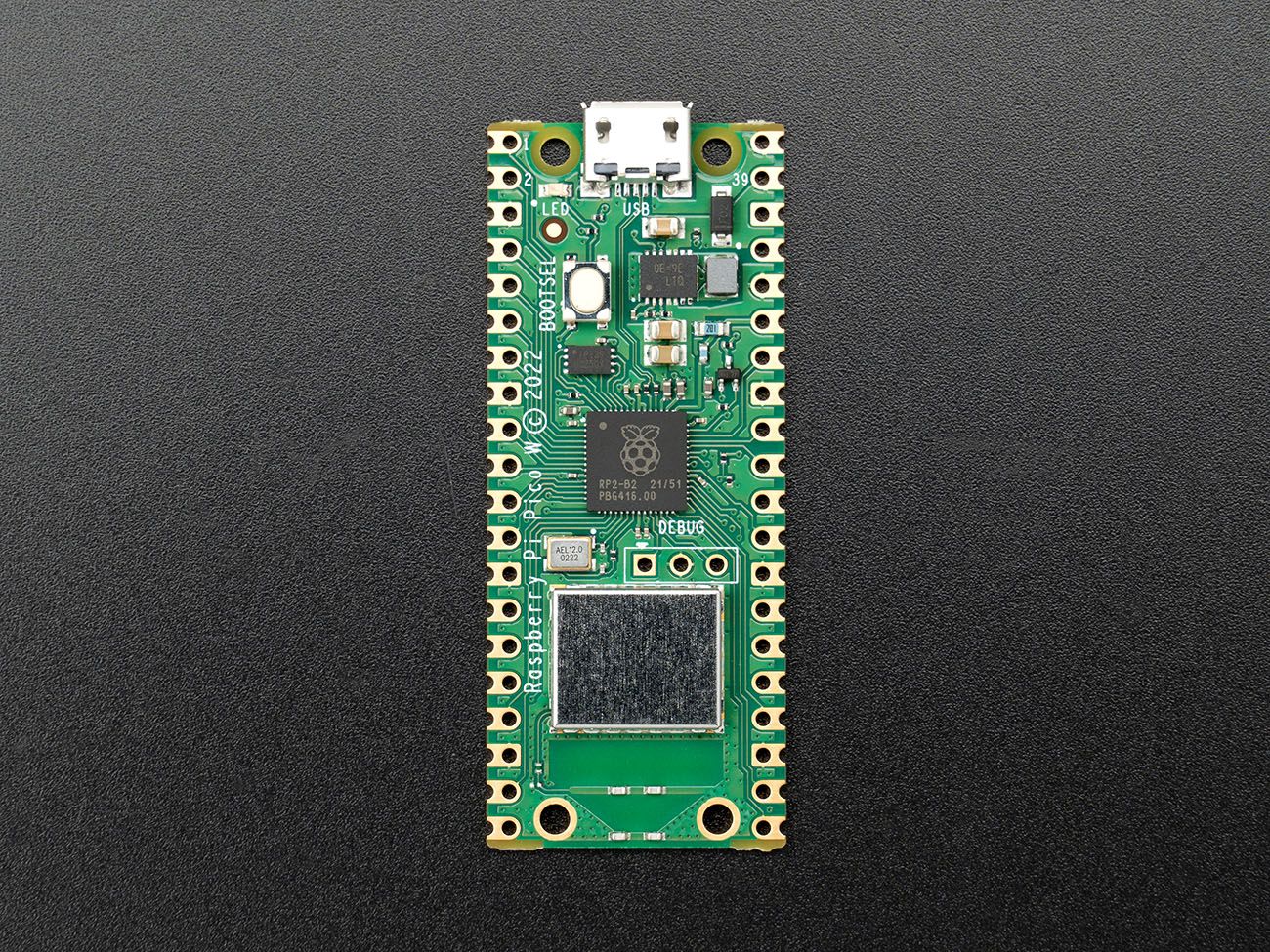

Raspberry Pi Pico WH

As we already know Raspberry Pi Pico is an entirely new type of development board based on RP2040, a new microcontroller from Raspberry Pi launched in January 2021. It a small, cheap, and flexible. it’s great for learning to code with MicroPython! Raspberry Pi RP2040 is a new microcontroller based on ARM M0+ architecture. Which is developed completely by the Raspberry PI Foundation.

However, now PICO has been improved by including a 2.4GHz wireless interface while keeping the same form factor as the previous one, and a New variant of PICO has arrived with the name Raspberry PI PICO WH and included the significant features listed below.

At the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+ cores clocked at 133MHz; 256KB
RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data
storage. Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN,
and Bluetooth 5.2; of these, only wireless LAN is supported at launch.

Features:

1. RP2040 microcontroller with 2MB of flash memory
2. On-board single-band 2.4GHz wireless interfaces (802.11n)
3. Micro USB B port for power and data (and for reprogramming the flash)

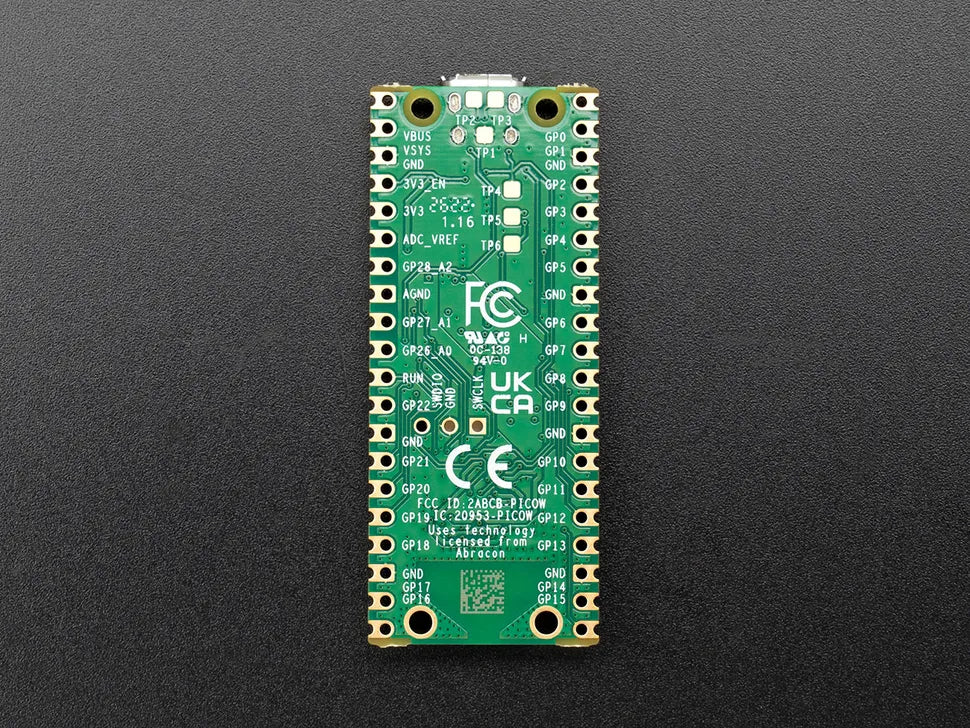

4. 40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
5. Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
6. 23 GPIO are digital-only, with three also being ADC capable
7. Can be surface mounted as a module
8. 3-pin ARM serial wire debug (SWD) port
9. Simple yet highly flexible power supply architecture
10. Various options for easily powering the unit from micro USB, external supplies, or batteries
11. High quality, low cost, high availability
12. Comprehensive SDK, software examples, and documentation
13. Dual-core Cortex M0+ at up to 133MHz
14. On-chip PLL allows variable core frequency
15. 264kByte multi-bank high-performance SRAM

Package Includes:

1 x Raspberry Pi Pico WH
