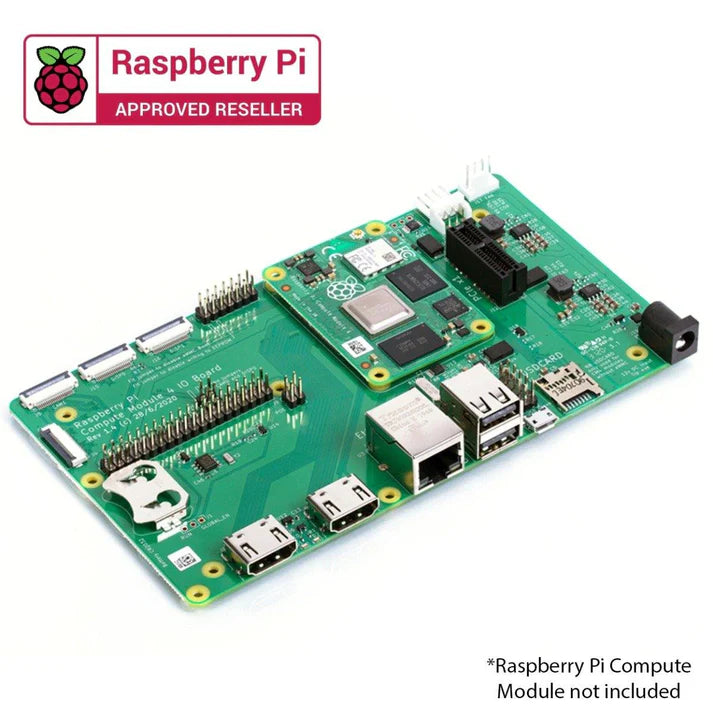

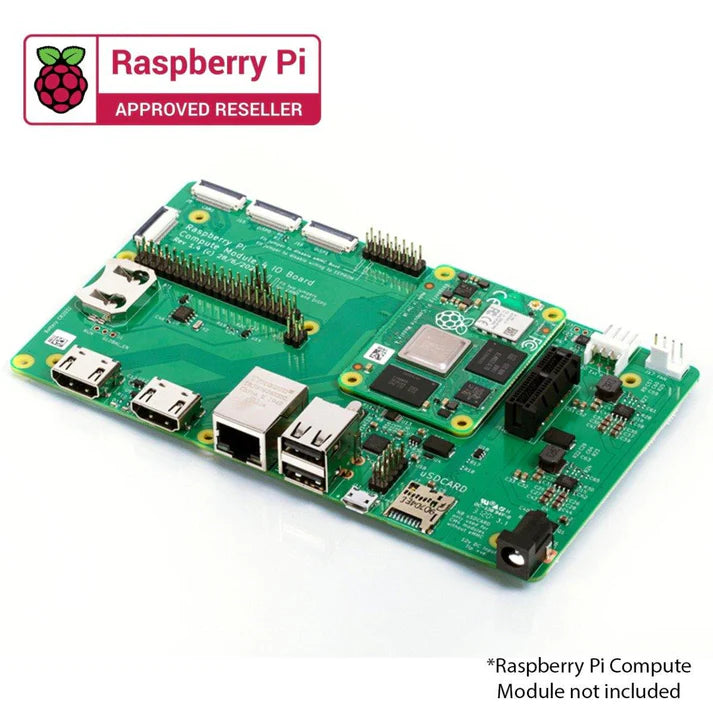

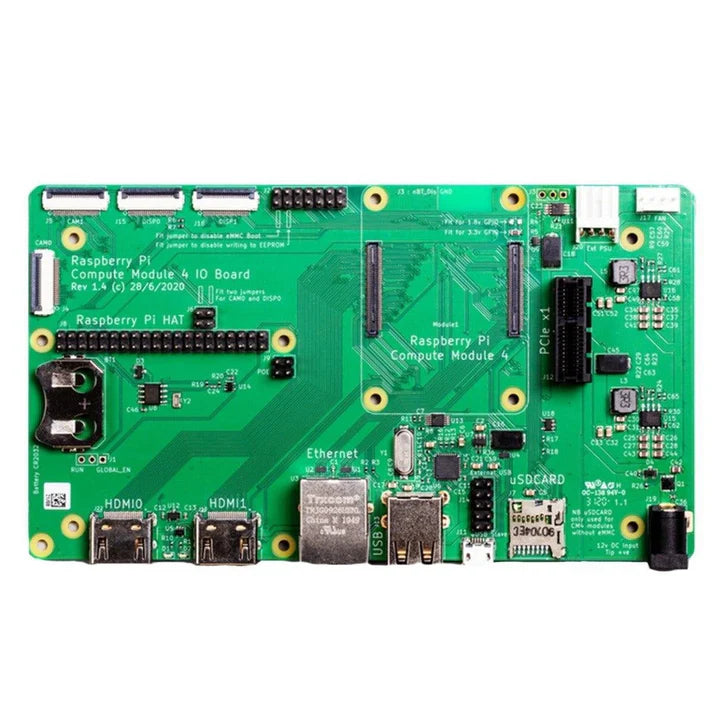

Raspberry Pi Compute Module 4 I/O Board

The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple

The Raspberry Pi Compute Module 4 IO Board has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

Introducing Orange Raspberry Pi Kits

Stuck in a never-ending cycle of learning Sensors, Micro-controllers, microprocessors, and communication protocols but not gaining any knowledge? Let us introduce you to Orange premium kits. These high-quality kits comes with free e-booklet and blogs to help you learn faster.

Click Here To Explore Our Learning Kits!

Features:

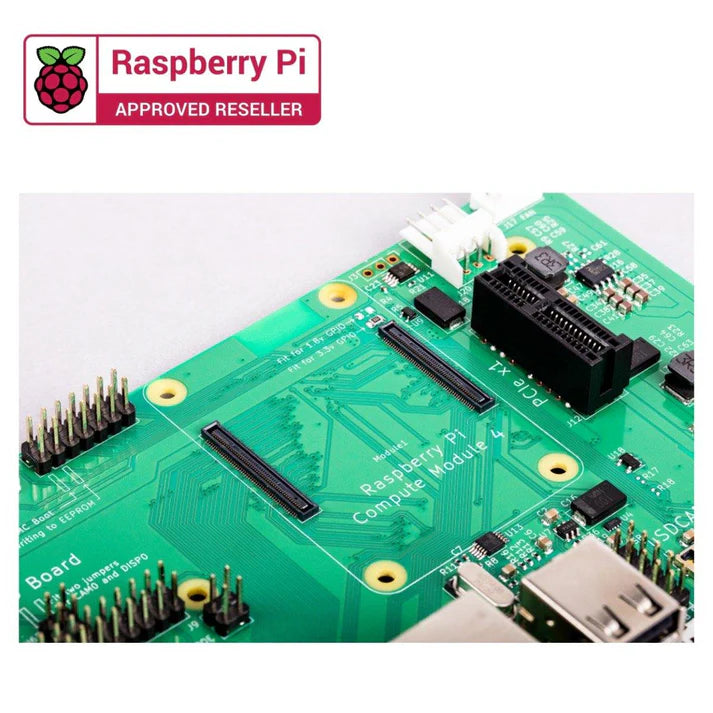

1. CM4 socket: suitable for all variants of Compute Module 4
2.  Standard Raspberry Pi HAT connectors with PoE support
3. Standard PCIe Gen 2 x1 socket
4. Real-time clock (RTC) with battery backup
5. Dual HDMI connectors
6. Dual MIPI camera connectors
7. Dual MIPI display connectors
8. Gigabit Ethernet socket supporting PoE HAT
9. On-board USB 2.0 hub with 2 USB 2.0 connectors
10. SD card socket for Compute Module 4 variants without eMMC
11. Support for programming eMMC variants of Compute Module 4
12. PWM fan controller with tachometer feedback

Package Includes:

1 x Raspberry Pi Compute Module 4 I/O Board
